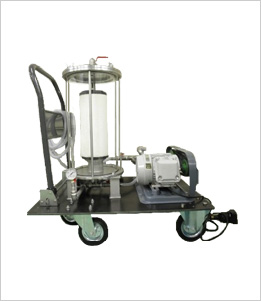

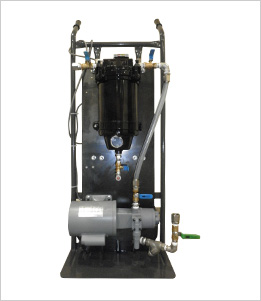

Compact in size and portable.
It can be used with kerosene, diesel oil, and lubricating oil.

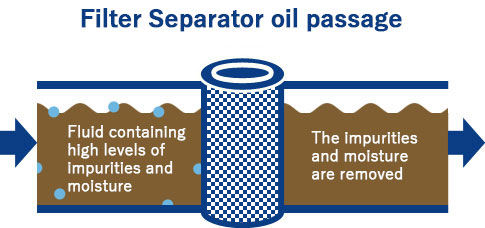

It can be used for simple moisture removal when water is mixed into turbine lubricating oil during disasters such as an earthquake.
In the “2018 Hokkaido Eastern Iburi Earthquake” that occurred on September 6, it was actually used at Tomato-Atsuma Power Station and contributed to the restarting of the power station.
| Model | VF-21SB-PGS-K | VF-21SB-PGS-L | VC-114-PGS-K |
|---|---|---|---|
| Type of oil*1 | Kerosene, diesel oil | Lubricating oil | Kerosene, diesel oil |
| Flow rate 50/60Hz | 30/36 ℓ/min | 6.7/8.1 ℓ/min | 48/58 ℓ/min |
| Power supply*2 | 100V | 100V | 200V |
| Discharge pressure | 0.4MPa | 0.5MPa | 0.4MPa |
| Cartridge part number | CC-21-7 | CC-21B | UC1-N1N |
| Filtration accuracy | 1μm | 2μm | 5μm |
| Water separation performance | Free water15ppm | 500ppm or lower*3 | Free water15ppm |
| Weight | 70kg | 60kg | 126kg |
Please feel free to contact us for questions on our products, technical consultations, or requests for quotes.
