Liquid-liquid separation/gas-liquid separation

■Conventional separation methods

1. （1）Settling
2. （2）Distillation
3. （3）Centrifugation
4. （4）Absorption

Principle and mechanism: What is a Coalescer?

1. Liquid-liquid separation

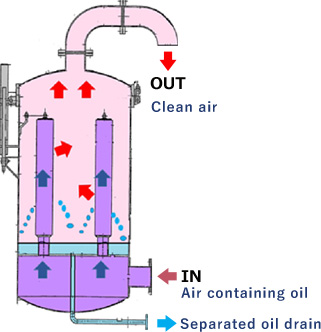

2. Gas-liquid separation

•
• Emulsion
  break
  0.5~50μm
• Coalescing on
  filter media
  2~6mm
• Remove from
  filter media
•

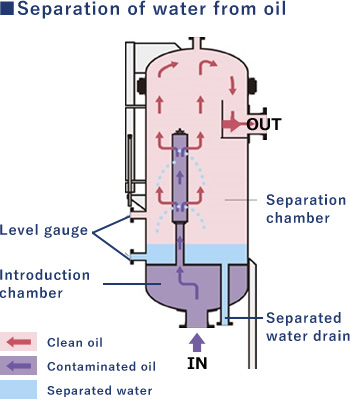

A Coalescer cartridge has a special multi-layered structure which instantaneously breaks down the emulsion (clouding) by running the fluid through the Coalescer cartridge in the direction IN -> OUT. Separation occurs due to the difference in specific gravity between fluids.

The flow of the fluid proceeds as shown above, and coalescing is conducted on the dispersed fluid particles of 0.5 to 50 μm within the Coalescer cartridge to let them grow to droplets of 2 to 6 mm. Separation is addressed by the specific gravity of each fluid, and only the necessary fluid is sent to the later stage of the process.

Process Coalescer on video

Media of Coalescer Cartridge

WAFTEC changes the media of the Coalescer cartridge to suit the characteristics of the fluids handled by the customer.
In general, glass fiber is popularly used by many plants, and carbon fiber is recommended if the fluid reaches high temperatures.

• Glass Fiber (normal)
• Glass Fiber (fine)
• Polypropylene
• Carbon fiber
• Rayon

Process Coalescer conditions of use

Benefit of Process Coalescer

1. ・Both the cost of introduction and the operating costs are low
2. ・Easy maintenance by simple cartridge replacement
3. ・High separating precision
4. ・Contribution to productivity improvement

Why choose WAFTEC?

WAFTEC R&D Center is the only filter manufacturer in Japan which owns testing facilities.
Capable of Process Coalescer testing on various fluids. We offer optimal proposals for our customers.

We also provide extensive after-sale follow-up services for problems that occur after the equipment is delivered.
We help customers solve their problems through analysis on products after use.

Liquid-liquid separation/gas-liquid separation products

• Filter Water Separator
• Process Coalescer
• Oil Mist Separator
• Oil Purifier
• Portable Filter Water Separator

Principle and mechanism: What is solid matter removal?

・Fluid contains high levels of foreign matters and impurities

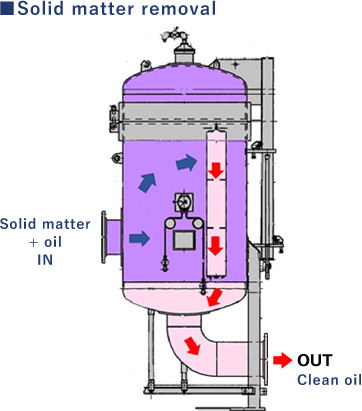

1. Principle and mechanism

By passing fluid such as oil or water containing impurities through the cartridge in the direction OUT -> IN, the fluid and impurities are separated.
Only the necessary fluid is sent to the later stage of the process.

Features of the Micro Filter

1. ・Wide product lineup (nominal size 1 μ to 150 μ)
2. ・Capable of handling fluids at temperatures from below freezing to high
3. ・Also capable of handling gas

Solid matter removal products

• Micro filter
